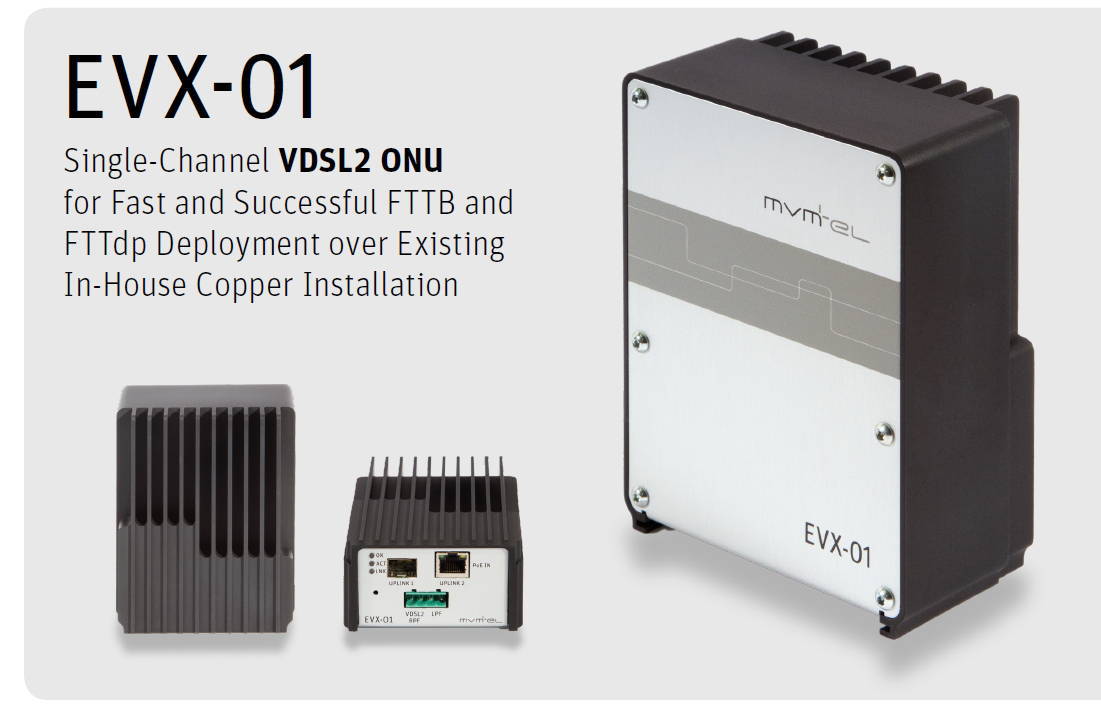

EVX-01 Single Port VDSL2 ONU / DPU

evx-01

Aggregate data rates up to 300 Mbps!

The EVX-01 system is a Plug & Play solution distributing ultra-speed data inside single- and multi-dwelling houses.aggregate data
In many cases, operators have installed 1G Ethernet optical fiber pipes in front of the house but still can’t deliver premium Triple Play services to customers because of in-house fiber installation problems. In multi-dwelling houses, residents often can’t agree on the in-house installation work and related expenses, which in turn entirely blocks all deployment.

The EVX-01 solution overcomes this issue by “unbundling” the installation case. This makes it possible to address each customer individually.

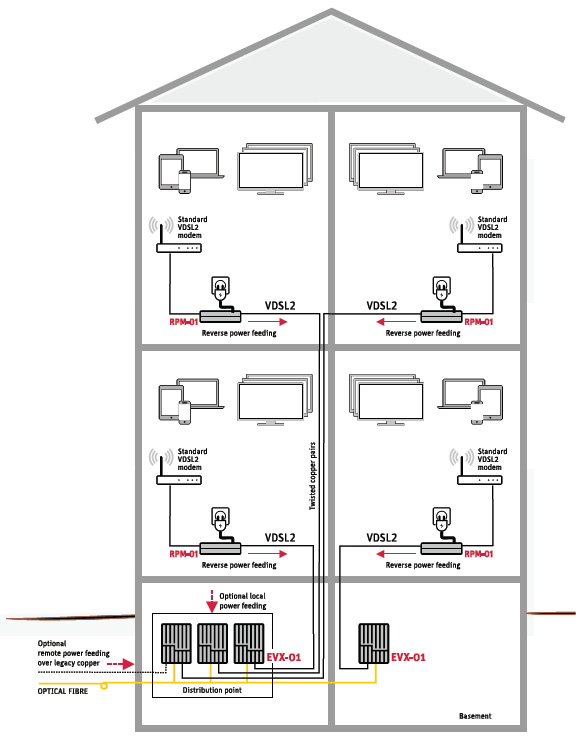

Instead of carrying out new installations, the existing telephone cable is used. The EVX-01 solution uses a single copper pair to transmit ultra-high-speed data and to power equipment all at the same time. Each customer powers his associated ONU EVX-01 unit, which is installed in the basement or at a distribution point (dp), from his mains via the RPM-01 unit. Each fiber is connected to an individual EVX-01 ONU, and the latest VDSL2 technology is used to transmit 200 Mbps (total BW 300 Mbps) up to the customer. Any standard VDSL2 modem can then deliver premium Triple Play services.

Main features & specifications

Network Standards

  • 10/100/1000BASE-T…………IEEE802.3, 802.3u, 802.3ab, 802.3x, 802.3ac
  • 1000BASE X……………………IEEE802.3z, (2500BASE-X-optional)
  • Energy efficient Ethernet…IEEE 802.3az
  • PoE………………………………..IEEE 802.3af, IEEE 802.3at
  • QoS&VLAN……………………..IEEE 802.1p, 802.1q, 802.1ad

Protocol:

  • Transparent to higher layer protocols

VDSL2 compliant standards with:

  • ITU-T G.993.2, all Profiles up to 30a
  • ITU-T G.993.2 Amd.5, annex-P
  • Broadband-Forum TR-114
  • G.HS
  • G.INP (G.998.4) Retransmission
  • G.998.4 Amd.2 extended memory for enhanced rates

FEATURES:

  • Within a distance of 300 meters maximum speed of 200/100 Mbps even with G.INP enabled (retransmission)
  • Selectable “Band Plan” allows allocation of throughput
  • Diagnosis of DSL link function
  • Line SNR select
  • Line Interleave protect
  • Band Plan profile selectable

Bridging and VLAN

  • Filtering functions for MAC/IP/Port.
  • QoS for Port/VLAN/DSCP/TCP-UDP Port number.
  • Port Based VLAN & IEEE 802.1q VLAN Tagging, IEE 802.1ad QinQ, 802.1 QoS
  • Port configuration for
  • Bandwidth/Duplex/Speed/Flow control/
  • Broadcast storm

Connectors:

  • Interchangeable SFP module:
  • Ethernet: 10/100/1000 Base T (RJ45) or
  • Optical gigabit Ethernet (SFP-LC, single/multi-mode, single/dual fiber) or GPON ONU solution compliant with ITU-T G.984 standard
  • 10/100/1000 Base T, PoE, RJ-45
  • Local powering (48V/0,3A )

Indicators

  • Power LED
  • LAN x/Optical Link/Act LED
  • Line Link/Act LED

Power Requirement-Options:

  • Local powering (48V/0,3A or 100-240VAC via adaptor)
  • PoE acc. to IEEE802.3af
  • Reverse powering compliant with ETSI TR 102 629 and ETSI EN 302 099
  • Remote powering through spare copper pair
  • (ILoop < 55 mA, symmetry guarded)

hiska



Emissions Compliance

  • FCC part 15 Class B, CE Mark

On-board surge protection
Housing:

  • Dimensions: (WxLxD) = 4,6 x 11,5 x 8,7 cm
  • Metal with passive cooling and lock possibility
  • DIN rail stacking

Environment Conditions

  • Operating Temperature: -20C ~ +70ºC
