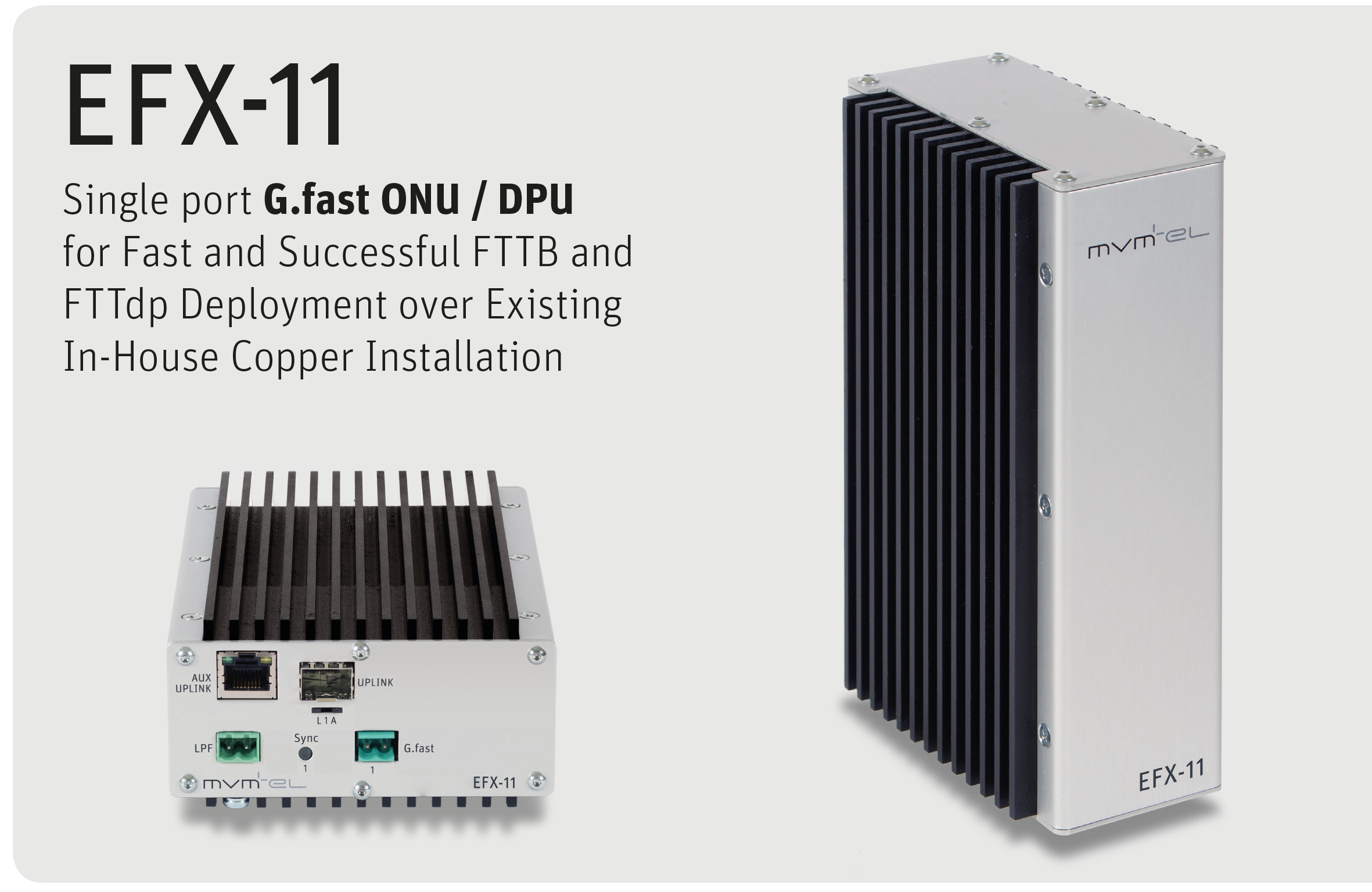

EFX-11 Single Port G.fast ONU / DPU

Aggregate data rates up to 1 Gbps!

The EFX-11 system is a Plug & Play solution distributing ultra-speed data inside single- and multi-dwelling houses.
In many cases, operators have installed 1G Ethernet optical fiber pipes in front of the house but still can’t deliver premium Triple Play services to customers because of in-house fiber installation problems. In multi-dwelling houses, residents often can’t agree on the in-house installation work and related expenses, which in turn entirely blocks all deployment.
The EFX-11 single port G.fast DPU (ONU) overcomes this issue by “unbundling” the installation case. It makes it possible to address each customer individually.
Instead of carrying out new fibre installations, the existing telephone cables are used. The EFX-11 uses a single copper pair to transmit ultra-high-speed data and to power equipment, all at the same time. Each customer powers his associated ONU EFX-11 unit, which is installed at distribution point (dp), in the basement or in the hallway (front door scenario), from his mains via the RPM-01 unit. Each fiber (GPON, P2P) is connected to an individual EFX-11 ONU, and the latest G.fast technology is used to transmit 700 Mbps (total BW 1 Gbps) up to the customer.
G.fast modem can then deliver premium Triple Play services.
